Building Full height Pedestrian Turnstile Gate / Construction Site Security Turnstiles

Name: Building Full height Pedestrian Turnstile Gate Construction Site Security Turnstiles
Brand: Ironman
Price: 1 USD

Brand Name : Ironman

Model Number : IM.Q801D

Certification : CE; FCC; ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 2000 pc per/month

Delivery Time : 8-15 work days

Packaging Details : carton packing

Name : Pedestrian Full Height Turnstile

Dimensions : SUS 304 stainless steel

Swing Arm Material : AC110~220V±10V

Channel Width : 500~600 mm

Working Environment Temperature : -30℃～70℃

Contact Now

Building Full height Pedestrian Turnstile Gate / Construction Site Security Turnstiles

Full height Turnstiles< IM.Q801D>Product Specifications
Product Parameters	Dimensions:	Double:150014602300mm	Box Material:	Box: Stainless steel SUS304 1.2mm Rotary Bar: Stainless steel SUS304 2.0mm
	Swing Arm Material:	Stainless steel SUS304	Channel Width:	500~600MM
Technical Parameters	◆Chassis Material: Austenitic stainless steel SUS304 ◆Internal Structure: Steel Frame Construction/Standard Stainless Steel Housing; ◆Work Voltage: AC110V~220V±10V ◆Normal Work Life: Continuous opening and closing for more than 5 million times ◆Working Environment Temperature: -30℃～70℃ ◆Relative Humidity: 0～90%(No condensation) ◆Communication Interface: Switching electrical signal, extensible RS232 serial port ◆Working Speed of the Gate: ≤20 persons/min(The memory mode can be turned on) ◆Passing Time: passing time by swiping card: 5S(If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function Parameters	Basic Functions	●Passing Indicator Function: The LED indicator board is installed in the eye-catching part of the housing frame to prompt pedestrains the gate's passing status annd direction.
		●Anti-trepass function: when the card is invalid, no card is swiped or the passage is forbidden, pushing the bar focibly will be regarded as illegal entry, and the system will alarm and lock the brake rode automatically. (so that it could not be pushed)
		●Access Control: The external port can be connected to a variety of biometric identification devices.
		●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.

	Extensible Functions	▲Intelligent Linkage Alarm: Can be linked with other alarm monitoring equimpemnet；
		▲Voice broadcast, expandable voice module, and volume adjustment.
		▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds.
		▲Fire Linkage △Normally open mode: the gate maintains the open state; △ Normally closed mode: the gate maintains the switch state.
		▲Passage Mode △Bidirectional passage, swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.

Project

Building Full height Pedestrian Turnstile Gate / Construction Site Security Turnstiles

Product Application

widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.

Product Tags:

Building Pedestrian Turnstile Gate

Full Height Pedestrian Turnstile Gate

Construction Site Security Turnstiles

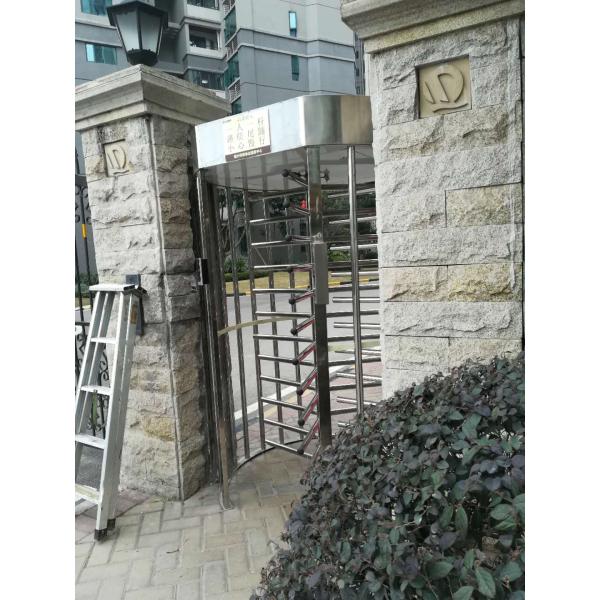

Building Full height Pedestrian Turnstile Gate / Construction Site Security Turnstiles Images
